Key Features
YK-XZ01 is a battery-powered mobile self-propelled pallet wrapping robot, specially developed for warehouses, logistics yards, factories with limited fixed station space and heavy immovable pallet loads.
- Material :
LLDPE film - Color :
Blue - Profile :
Pre-Stretch Ratio：300% ~ 350% adjustable Standard Max Wrapping Height 2100mm：Customizable up to 2400mm Minimum Pallet Size：600 × 600 mm Maximum Pallet Limit ：Unlimited length, width & weight Wrapping Rotation Speed： 1 ~ 16 rpm stepless adjustable Stretch Film Standard Width： 500mm, core inner diameter 76mm, thickness 23–50μm LLDPE film Drive MotorsWalking motor: 0.40KW DC; Lifting motor: 0.18KW DC; Film stretch motor: 0.35KW DC Battery Configuration： 2pcs 12V 100AH lead-acid batteries Continuous Working Time ：8 hours after full charge Charging Condition ：AC 220V 50/60Hz, charging time 8–10 hours Max Walking Speed： 75 m/min Total Machine Weight ：325–350 KG

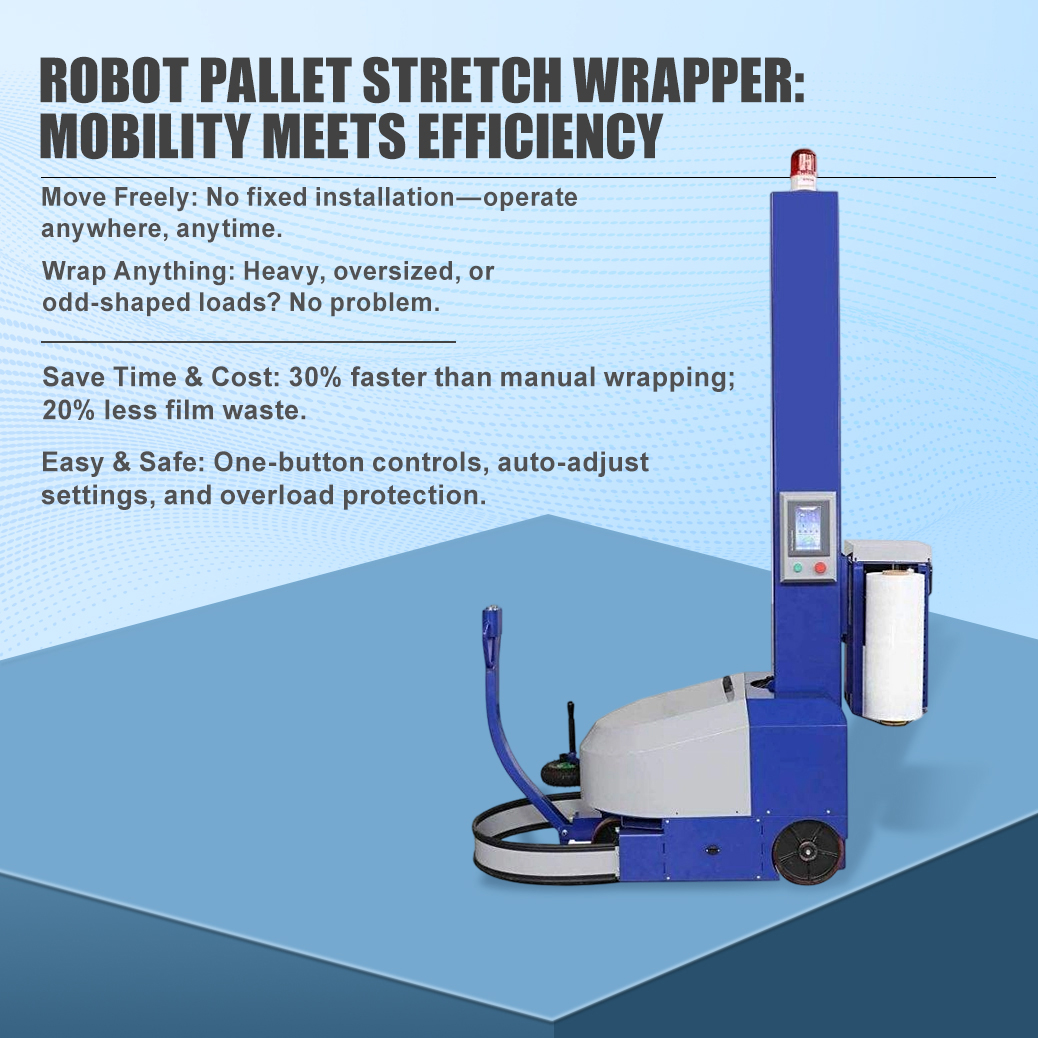

YK-XZ01 Pallet Wrapping Machine
YK-XZ01 is a battery-powered mobile self-propelled pallet wrapping robot, specially developed for warehouses, logistics yards, factories with limited fixed station space and heavy immovable pallet loads.Different from traditional fixed turntable wrapping machines, this unit moves autonomously around stationary pallets instead of rotating goods on a turntable. It adopts PLC intelligent control + photoelectric height sensing, 300% high pre-stretch film carriage and DC driving system.Equipped with rechargeable lead-acid batteries, the machine can work continuously for 8 hours after full charging, freely moving to any pallet position for wrapping without forklift transferring heavy cargo. It automatically detects pallet height, adjusts wrapping layers up & down, and completes tight, uniform LLDPE film bundling for carton stacks, chemical barrels, hardware pallets and bulk cargo.Compact body design saves factory floor space; no fixed foundation installation required. Widely applied for large, overweight cargo that cannot be transported to fixed wrapping stations, ideal for multi-area shared packaging operations. It passes CE mechanical safety certification and supports OEM customization of wrapping height, film tension program and battery capacity.
DATASHEET
| Item | Standard Specification of YK-XZ01 Self-Propelled Pallet Wrapper |
|---|---|
| Model | YK-XZ01 Self-Propelled Pallet Stretch Wrapping Machine |
| Working Mode | Machine moves around stationary pallet, battery wireless drive |
| Control System | PLC + Color Touch Screen + Photoelectric Height Sensor |
| Pre-Stretch Ratio | 300% ~ 350% adjustable |
| Standard Max Wrapping Height | 2100mm; Customizable up to 2400mm |
| Minimum Pallet Size | 600 × 600 mm |
| Maximum Pallet Limit | Unlimited length, width & weight |
| Wrapping Rotation Speed | 1 ~ 16 rpm stepless adjustable |
| Stretch Film Standard | Width 500mm, core inner diameter 76mm, thickness 23–50μm LLDPE film |
| Drive Motors | Walking motor: 0.40KW DC; Lifting motor: 0.18KW DC; Film stretch motor: 0.35KW DC |
| Battery Configuration | 2pcs 12V 100AH lead-acid batteries |
| Continuous Working Time | 8 hours after full charge |
| Charging Condition | AC 220V 50/60Hz, charging time 8–10 hours |
| Max Walking Speed | 75 m/min |
| Total Machine Weight | 325–350 KG |
| Frame Material | Thick carbon steel, anti-rust electrostatic powder coating |
| Overall Machine Dimension | Compact mobile body, narrow aisle passable |
| Safety Devices | Emergency stop, anti-collision sensor, low battery alarm, overload protection |
| Working Capacity | Up to 18 pallets per hour |
| Certifications | CE, ISO factory mechanical inspection report |

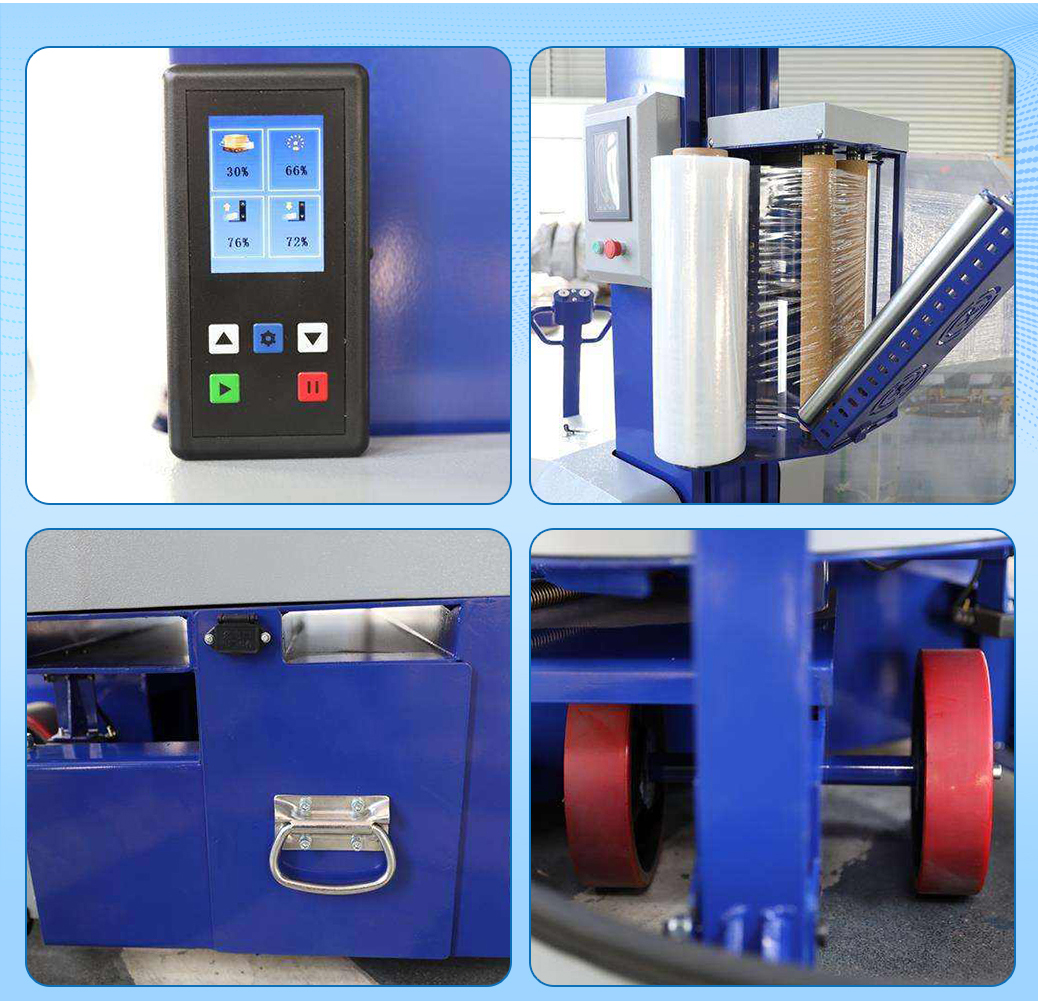

| Standard Accessories | Touch control panel, charger, anti-collision wheel, film carriage assembly |
| Optional Customization | Higher wrapping column (2400mm), high-capacity lithium battery, remote hand-held controller |
| Warranty | Whole machine 1 year; Core motors & PLC 3 years |
| Export Packing | Fumigation-free plywood wooden case |
| Operating Environment | Indoor 5℃–40℃ flat concrete floor, dry warehouse |
CORE ADVANTAGES
1.YK-XZ01 Mobile Pallet Wrapper: Wrap Any Heavy Pallet Without Turntable
2.Battery Self-Propelled Stretch Wrapper, Save Space & Forklift Labor
3.350% High Pre-Stretch Self-Walking Pallet Wrapping Robot CE Certified
4.No Fixed Station Needed, Flexible Wrapping For Multi-Workshop Logistics
WHY YOU CHOOSE US?
1.Fully Customizable – We tailor products to your exact specs: size, color, material, and branding.
2.Proven Quality & Price – 21 years experience, strong financials, and consistent quality at competitive rates.
3.Fast Delivery – Efficient logistics ensure quick turnaround, including full container options.
4.Dedicated Support – We provide responsive after-sales service to ensure your satisfaction.
FAQ
1.What is kind of your business?
We are specialized in PET Strapping , Polypropylene（PP) Strap,Steel straps， high strength green banding, polyester fabric, PET /PP Strapping Buckles, plastic strip tapes, Fully/semi automatic strapping machine，Carton Sealing Machines, Battery/ Pneumatic strapping tools, strecth film, wrapping machine and etc.
2.How about your production time?
Some products in our stock, we can arrange delivery right away. Generally speaking, the consumable materials is about 7 workdays, pneumatic packing tools and battery packing tools is in our stock, big packing equipment should be around 20-30 workdays.
3.Are you trade company or factory?
We are a manufacturer with an export headquarters office and three branch factories for production.
4.How about the payment term?
TT, L/C is acceptable.
