Key Features
MH101A fully automatic strapping machine is an electric tabletop PP band bundling equipment with auto strap feeding, tensioning, hot melting, cutting and retracting integrated.
- Material :
PP Strapping - Color :
White - Profile :
Model: MH101A Fully-automatic Strapping Machine Power Supply: 220V / 50Hz Rated Power: 500W Strapping Speed: 2 seconds per strap Applicable PP Strap Width: 11–13 mm PP Strap Thickness: 0.65–0.85 mm Adjustable Tension Range: 0–60 KG Welding Mode: Friction hot melt bonding (no metal buckles) Overall Dimension: L1380 × W620 × H1470 mm Standard Arch Frame: L800 × W620 × H600 mm (customizable size available) Net Weight: 105 KG
MH101A Fuly-automatic strapping machine

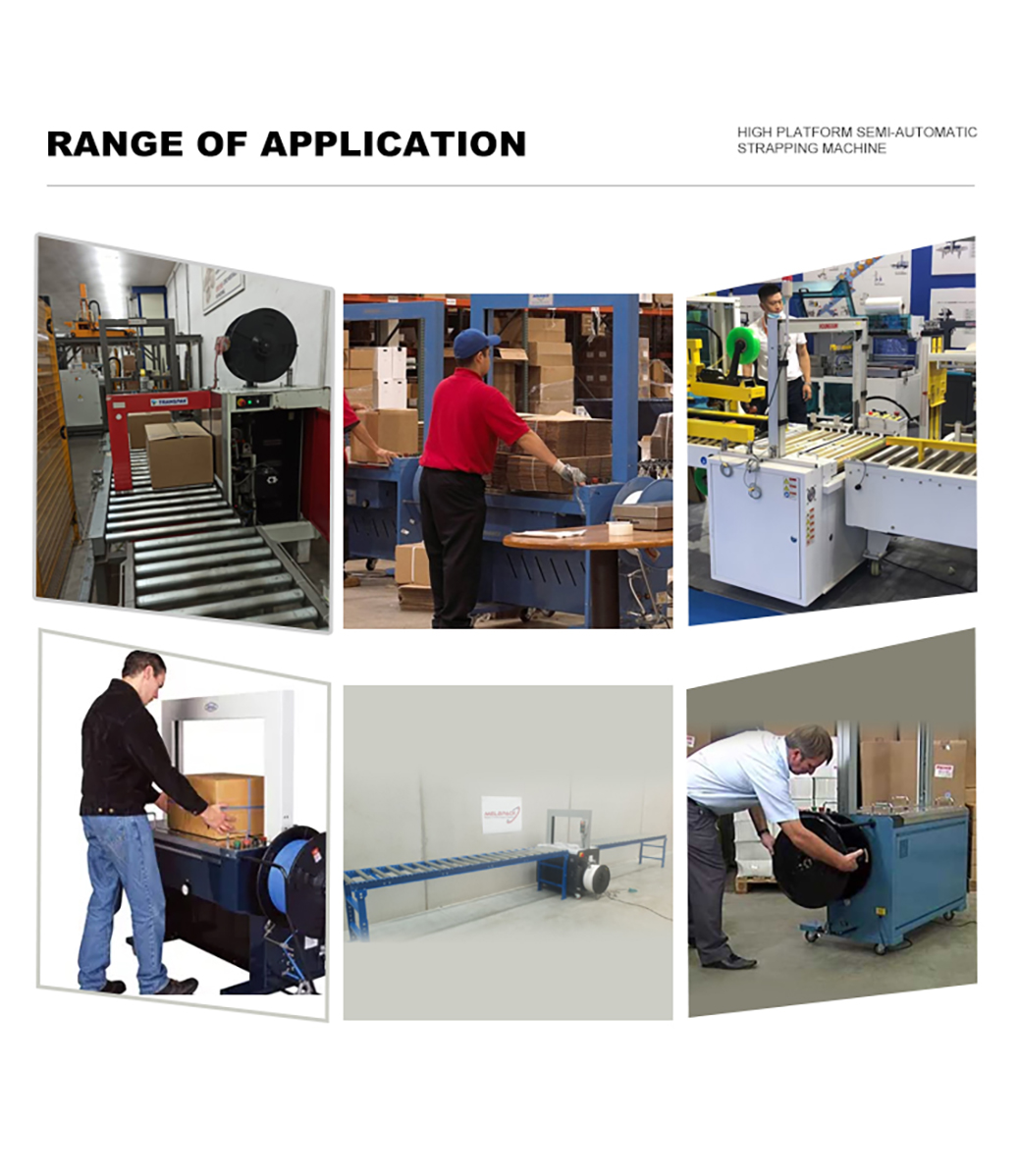

MH101A fully automatic strapping machine is an electric tabletop PP band bundling equipment with auto strap feeding, tensioning, hot melting, cutting and retracting integrated. Operators only place cartons on the working table, the machine finishes the whole strapping cycle automatically without manual threading straps. It’s widely applied in logistics, e-commerce, food, printing and factory assembly lines for continuous mass packaging.
DATASHEET
| Parameter Name | Parameter Value |
|---|---|
| Model | MH101A Fully-automatic Strapping Machine |
| Power Supply | 220V / 50Hz |
| Rated Power | 500W |
| Strapping Speed | 2 seconds per strap |
| Applicable PP Strap Width | 11–13 mm |
| Applicable PP Strap Thickness | 0.65–0.85 mm |
| Adjustable Tension Range | 0–60 KG |
| Welding Mode | Friction hot melt bonding (no metal buckles) |
| Overall Dimension | L1380 × W620 × H1470 mm |
| Standard Arch Frame | L800 × W620 × H600 mm (customizable size available) |
| Net Weight | 105 KG |
| Motor Type | Pure copper brushless motor |
| Optional Strapping Modes | 4 kinds of strapping modes |
| Frame Customization | Frame can be lengthened and widened as required |
CORE ADVANTAGES
1. Full automatic operation, zero manual strap threading, greatly boost packaging efficiency 2. Equipped with three pure copper brushless motors, stable high-speed running 3. Brushless design, no carbon brush replacement, lower maintenance cost 4. Independent large heating transformer, firm strap fusion, not easy to crack 5. Stepless adjustable tension, suitable for fragile and heavy packages 6. Compact integrated structure, occupies small workshop space 7. Four optional strapping modes to match diverse packaging demands 8. Customizable arch frame for extra large-sized goods bundling
WHY YOU CHOOSE US?
1.Fully Customizable – We tailor products to your exact specs: size, color, material, and branding.
2.Proven Quality & Price – 21 years experience, strong financials, and consistent quality at competitive rates.
3.Fast Delivery – Efficient logistics ensure quick turnaround, including full container options.
4.Dedicated Support – We provide responsive after-sales service to ensure your satisfaction.
FAQ
1.What is kind of your business?

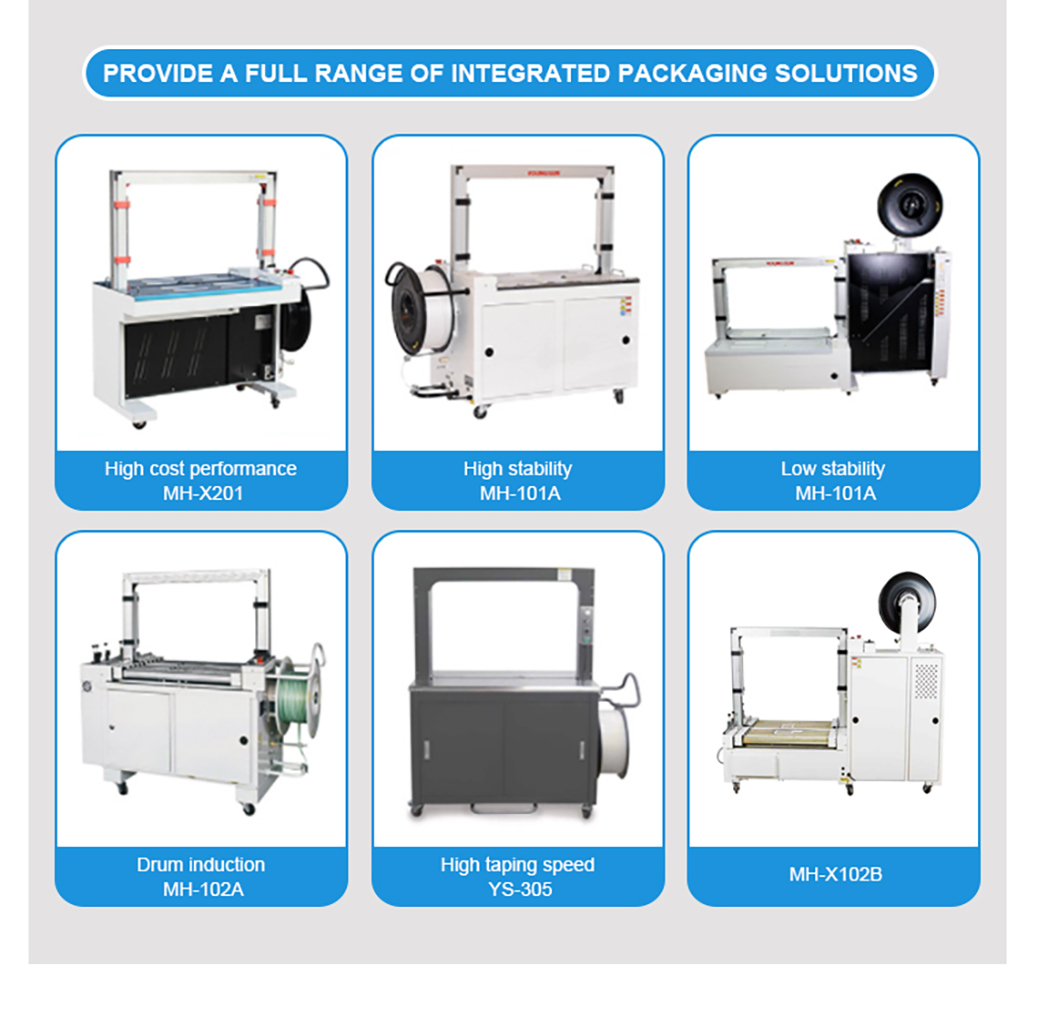

We are specialized in PET Strapping , Polypropylene（PP) Strap,Steel straps， high strength green banding, polyester fabric, PET /PP Strapping Buckles, plastic strip tapes, Fully/semi automatic strapping machine，Carton Sealing Machines, Battery/ Pneumatic strapping tools, strecth film, wrapping machine and etc.
2.How about your production time?
Some products in our stock, we can arrange delivery right away. Generally speaking, the consumable materials is about 7 workdays, pneumatic packing tools and battery packing tools is in our stock, big packing equipment should be around 20-30 workdays.
3.Are you trade company or factory?
We are a manufacturer with an export headquarters office and three branch factories for production.
4.How about the payment term?
TT, L/C is acceptable.
