Key Features
The XW20 is a lightweight handheld manual tensioner specially engineered for polyester composite corded strapping (woven fiber strap).
- Profile :
Applicable strap: Polyester composite corded / woven fiber strapping Strap width range: 13–20mm Strap thickness: 0.5–1mm Locking way: Matched with metal buckles Net weight: 1.2kg Overall dimension: L130 × H360 × W150mm Driving mode: Pure manual ratchet tensioning - Color :
Red - Material :
Polyester composite corded / woven fiber strapping

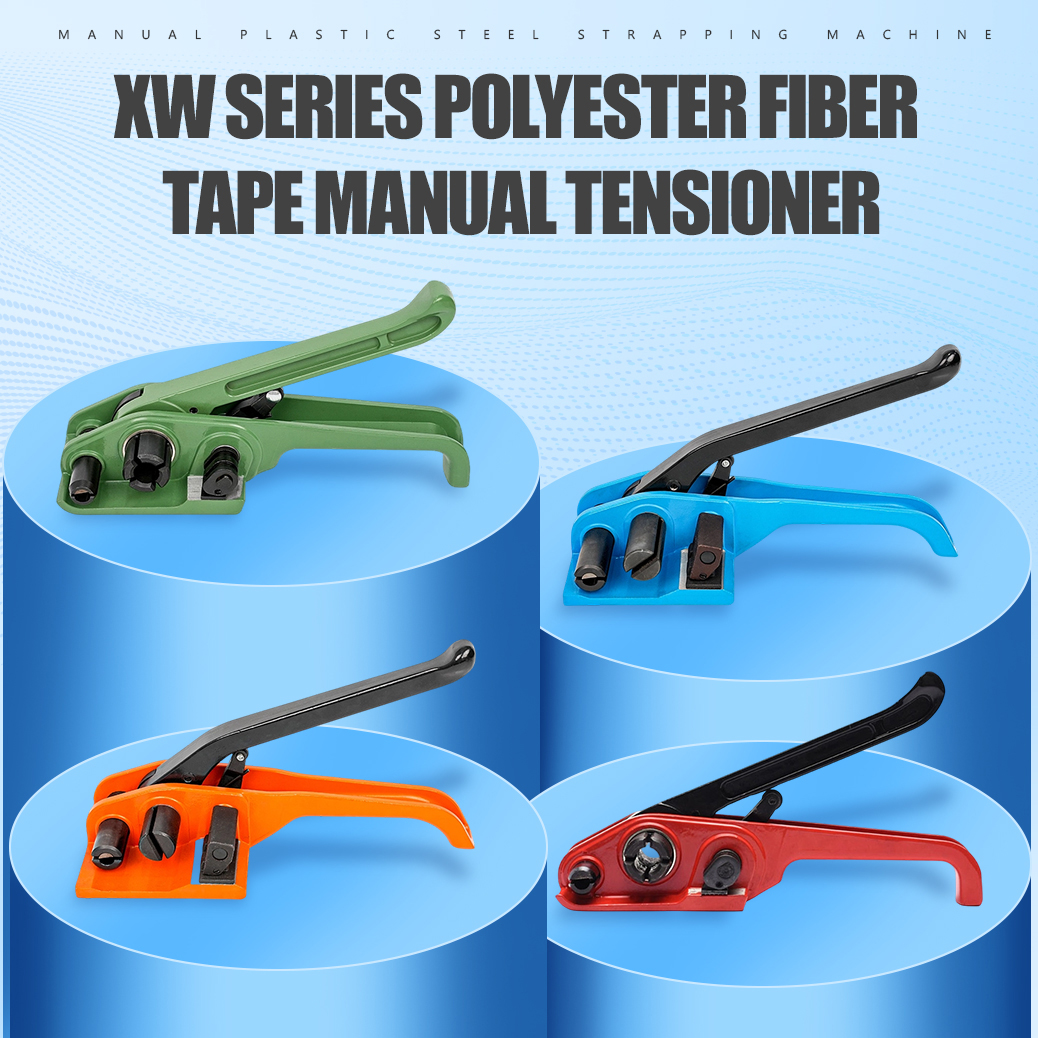

XW20 Manual tensioner for polyester composite corded strapping
The XW20 is a lightweight handheld manual tensioner specially engineered for polyester composite corded strapping (woven fiber strap). It only performs the tensioning function and works matched with separate metal buckles and strap cutters, perfectly compatible with 13–20mm wide flexible fiber straps (strap thickness: 0.5–1mm).

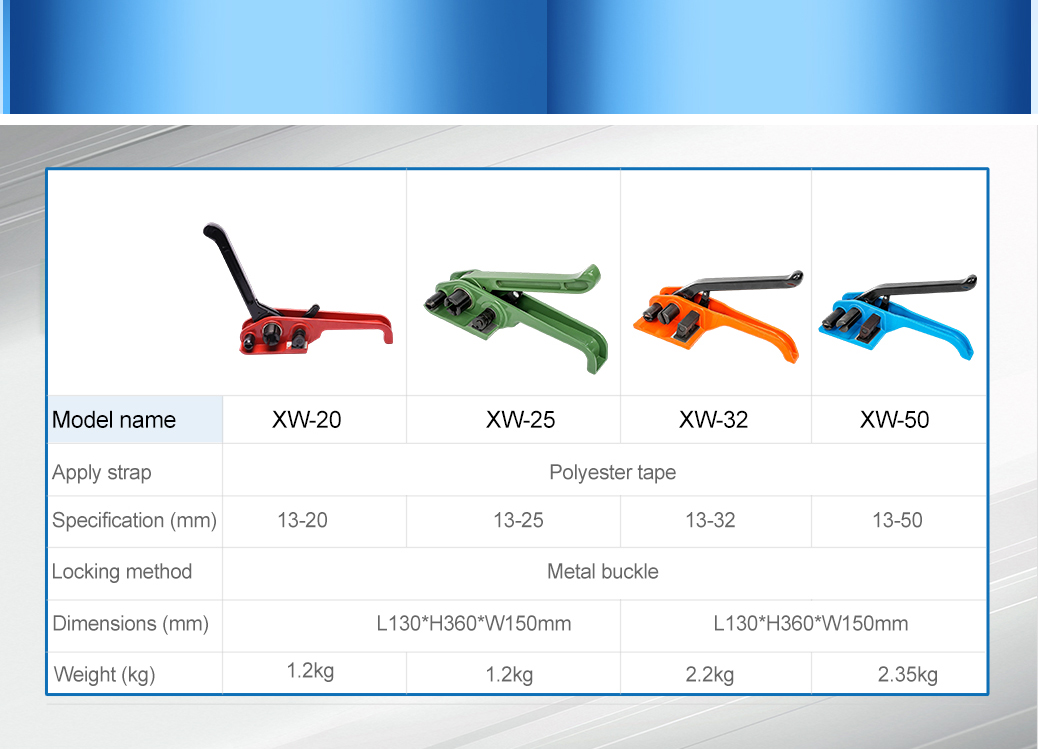

DATASHEET
| Model name | XW-20 | XW-25 | XW-32 | XW-50 |
| Apply strap | Polyester tape | |||
| Specification (mm) | 13-20 | 13-25 | 13-32 | 13-50 |
| Locking method | Metal buckle | |||
| Dimensions (mm) | L130*H360*W150mm | L130*H360*W150mm | ||
| Weight (kg) | 1.2kg | 1.2kg | 2.2kg | 2.35kg |
ADVANTAGES
1.Special ratchet roller for woven fiber strap, no strap damage during tensioning
2.Fits 13–20mm polyester composite cord strapping, matched with standard metal buckles

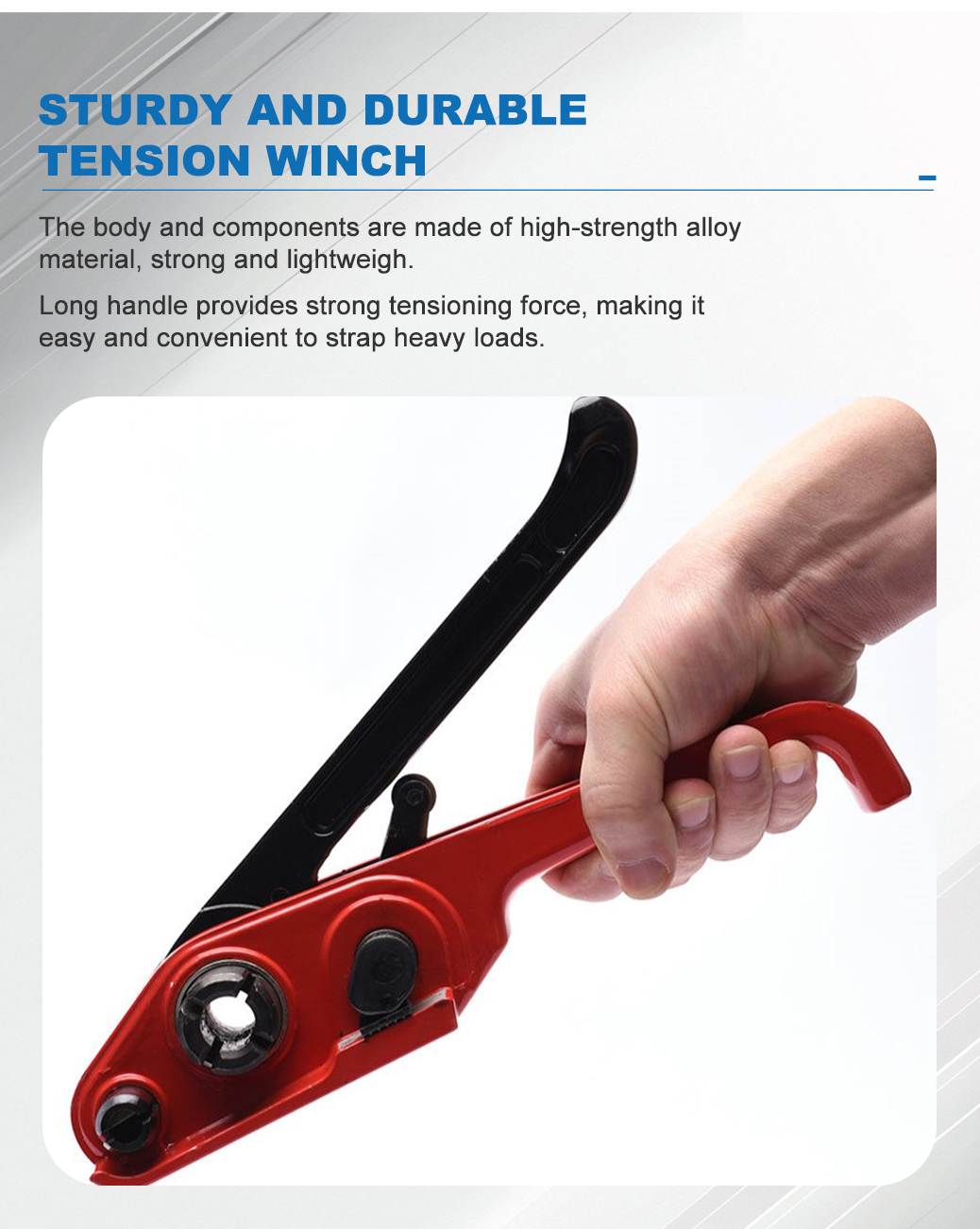

3.Ultra-light 1.2kg compact body, ergonomic curved handle for fatigue-free operation
4.Fully mechanical manual design, usable anywhere without electricity or air source
5.Anti-slip multi-tooth tension wheel, powerful adjustable tightening force to fix loose loads
6.Quenched alloy steel frame with anti-rust coating, wear-resistant and long service life
7.Safe closed roller structure, avoid finger pinching; easy maintenance & low cost
8.Versatile for timber, metal, stone, pallet, paper roll and export cargo packaging
WHY YOU CHOOSE US?
1.Fully Customizable – We tailor products to your exact specs: size, color, material, and branding.
2.Proven Quality & Price – 21 years experience, strong financials, and consistent quality at competitive rates.
3.Fast Delivery – Efficient logistics ensure quick turnaround, including full container options.
4.Dedicated Support – We provide responsive after-sales service to ensure your satisfaction.
FAQ
1.What is kind of your business?
We are specialized in PET Strapping , Polypropylene（PP) Strap,Steel straps， high strength green banding, polyester fabric, PET /PP Strapping Buckles, plastic strip tapes, Fully/semi automatic strapping machine，Carton Sealing Machines, Battery/ Pneumatic strapping tools, strecth film, wrapping machine and etc.
2.How about your production time?
Some products in our stock, we can arrange delivery right away. Generally speaking, the consumable materials is about 7 workdays, pneumatic packing tools and battery packing tools is in our stock, big packing equipment should be around 20-30 workdays.
3.Are you trade company or factory?
We are a manufacturer with an export headquarters office and three branch factories for production.
4.How about the payment term?
TT, L/C is acceptable.
