Key Features
The X50 is a portable pneumatic tensioner designed exclusively for polyester fiber straps from 19 mm to 50 mm wide.
- Material :
Polyester Composite Corded Strapping rolls - Color :
Silver - Profile :
Weight: 4.3kg Apply strap: Polyester Composite Corded Strapping Strap Specification: (19-50mm)*(0.6-0.8mm)

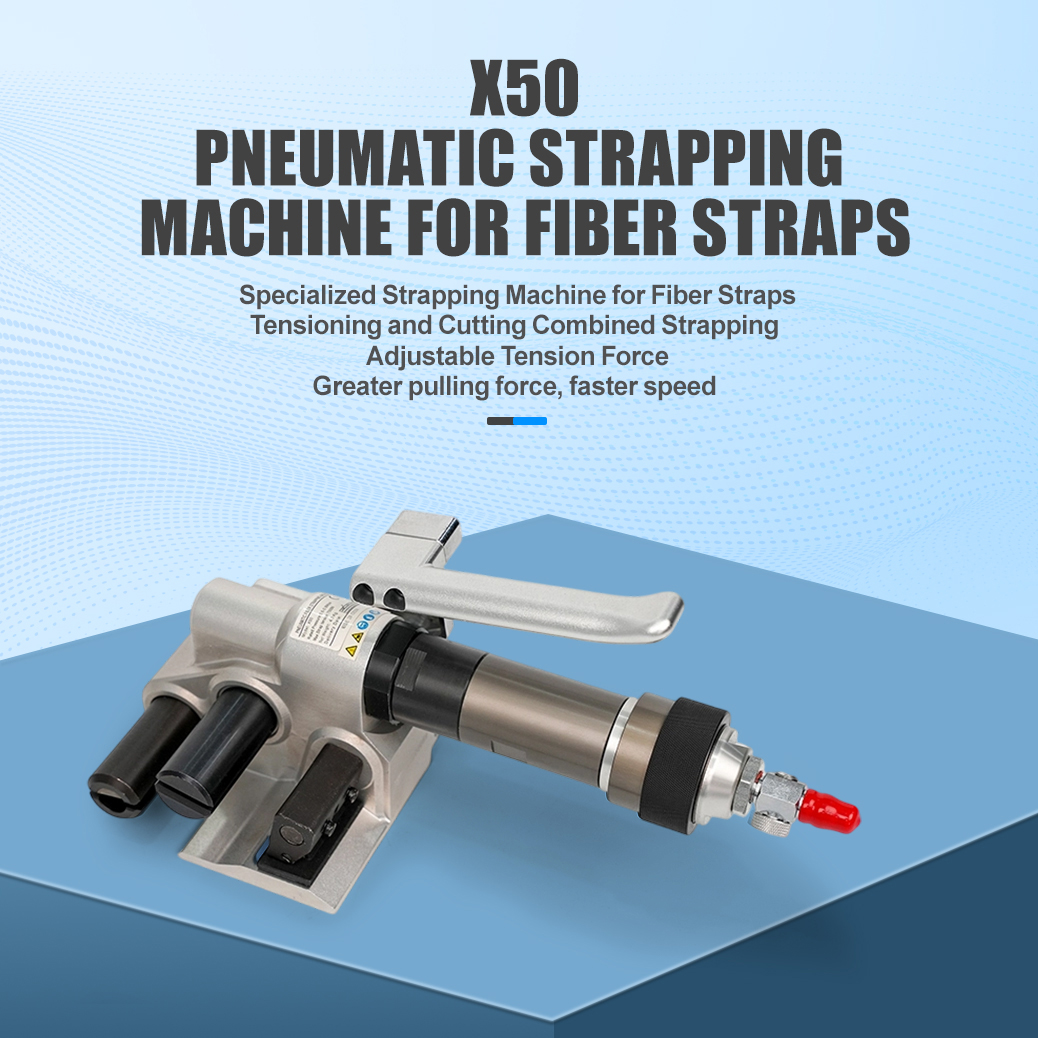

X50 Handheld Pneumatic Fiber Strapping Tool
The X50 is a portable pneumatic tensioner designed exclusively for polyester fiber straps from 19 mm to 50 mm wide. Driven by compressed air, it delivers high tension, fast tightening, and consistent performance for heavy-duty bundling. Lightweight and ergonomic, it is widely used as a professional tool for securing heavy loads in logistics, manufacturing, and construction.

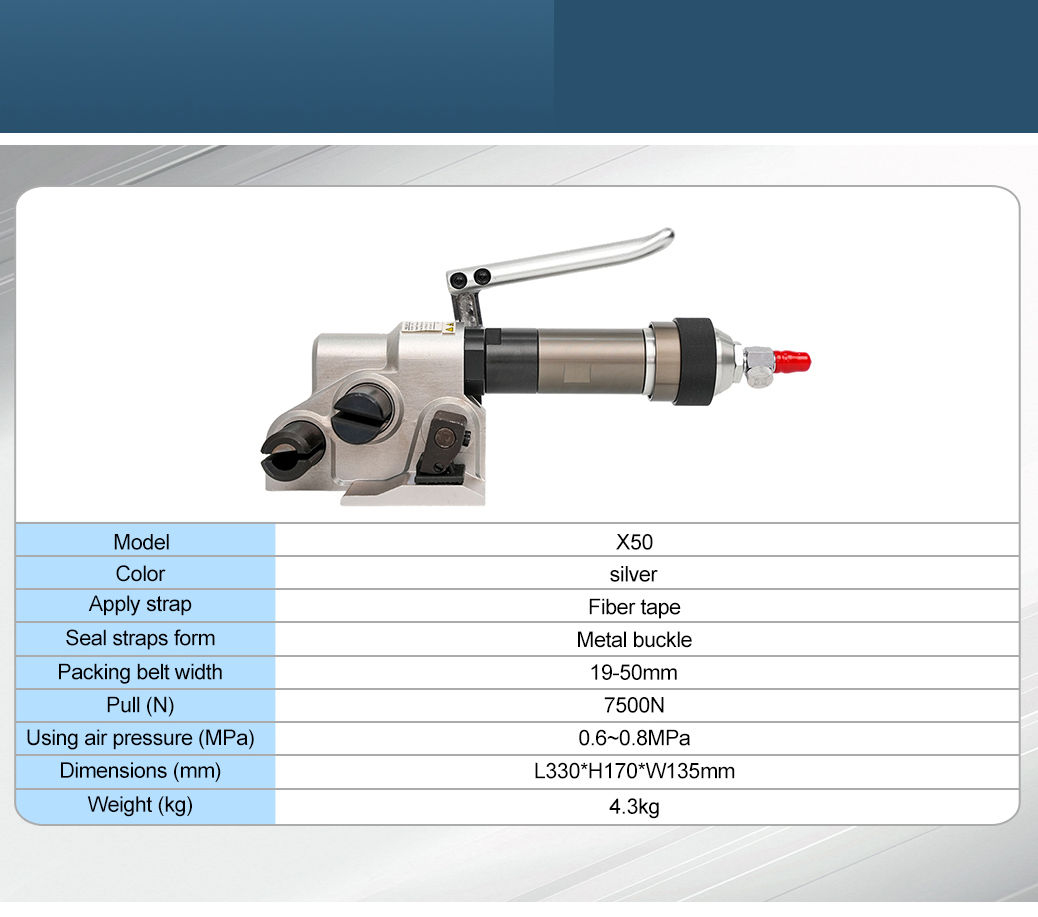

DATASHEET
| Model | X50 |
| Color | silver |
| Apply strap | Fiber tape |
| Seal straps form | Metal buckle |
| Packing belt width | 19-50mm |
| Pull (N) | 7500N |
| Using air pressure (MPa) | 0.6~0.8MPa |
| Dimensions (mm) | L330*H170*W135mm |
| Weight (kg) | 4.3kg |

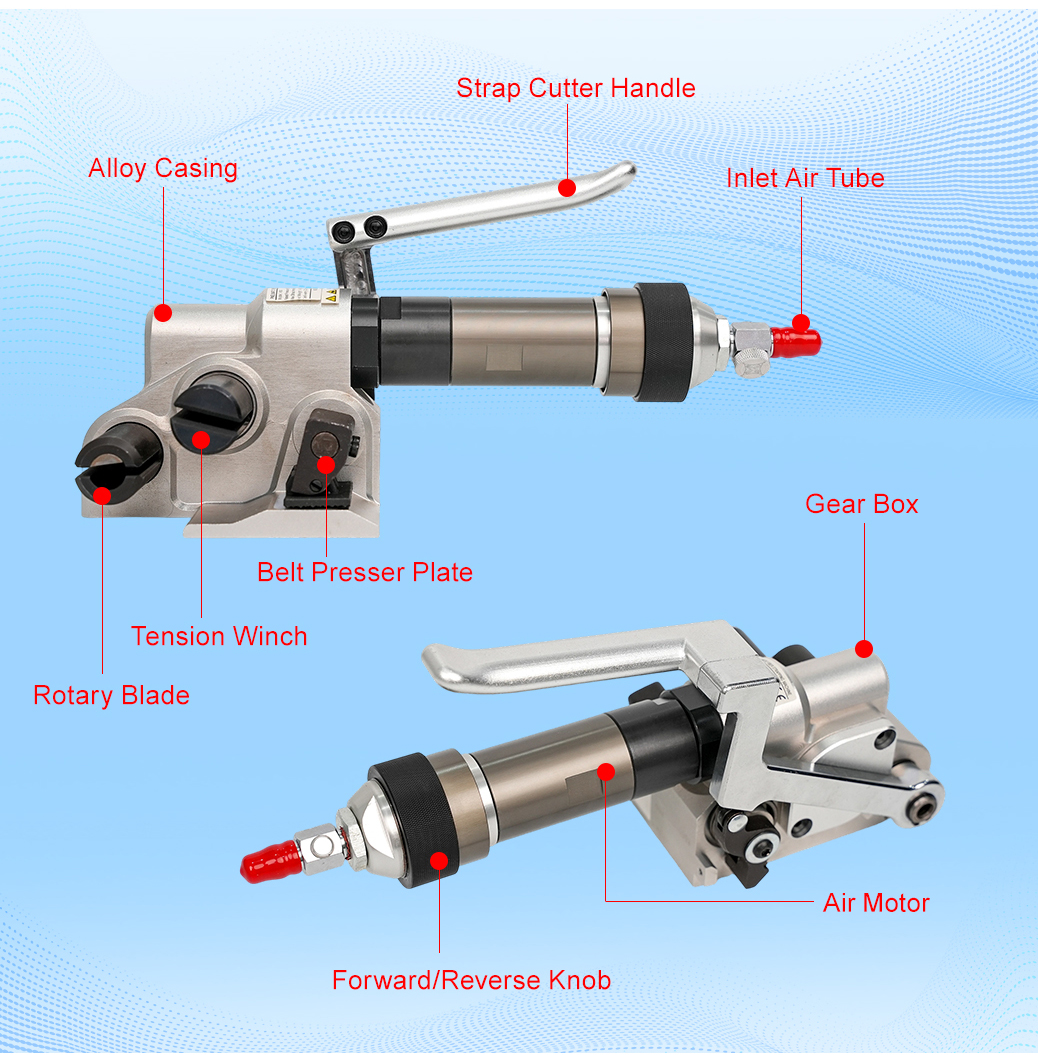

CORE COMPONENTS
DETAILS
1.Powerful Tension: Up to 7,500 N (750 kgf) pulling force; adjustable for different loads. 2.Wide Compatibility: Fits 19–50 mm wide, 0.5–1.5 mm thick polyester/glass fiber straps. 3.Light & Portable: Only ≈4.7 kg, one-hand operation, easy to carry and work in tight spaces. 4.Durable Build: All-metal housing, high-quality pneumatic motor, long service life. 5.Easy Operation: Simple lever control; fast tensioning with no electricity required. 6.Cost-Effective: Uses reusable fiber straps; lower cost than steel strapping in many applications.
APPLICATIONS
Logistics & Warehousing: Heavy pallets, containers, large machinery.
Building Materials: Timber, bricks, cement bags, construction panels.
Metal Industry: Aluminum ingots, copper coils, steel pipes/profiles.
Textile & Paper: Cotton bales, paper rolls, fabric bundles.
General Manufacturing: Heavy equipment, furniture, large crates, and bulk cargo
